7 Segment Watch

MonkeyEnFuego · **Joined:** Wed Mar 23, 2011 9:35 am **Posts:** 54

Think of this as my remote hack-a-thon submission

For my first app, I decided to do something simple. This app mimics a 7-segment display for a watch, including "ghosting" for the segment that aren't active but are always visible in "real life".

Features

- Shows hour:min:sec
- Displays time for 10 seconds, then sleeps to save battery
- Cycles colors every 3 minutes (blue, green, red)

That's it!

Thanks,
Matt

Code: Select all

 /**
 * Simple program to display 7 segment time
 *
 * Copyright (C) 2011, Matt Shea [email protected] twitter.com/Matt_Shea
 *
 * Permission to use, copy, modify, and/or distribute this software for
 * any purpose with or without fee is hereby granted, provided that the
 * above copyright notice and this permission notice appear in all copies.
 *
 * THE SOFTWARE IS PROVIDED "AS IS" AND THE AUTHOR DISCLAIMS ALL
 * WARRANTIES WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED
 * WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL THE AUTHOR
 * BE LIABLE FOR ANY SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES
 * OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS,
 * WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION,
 * ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS
 * SOFTWARE.
**/

#include <pulse_os.h>
#include <pulse_types.h>

#define FALSE 0
#define NULL 0
#define TRUE 1

#define MERIDIEM_AM 0
#define MERIDIEM_PM 1

// How big are we going to make the segment size
#define SEGMENT_WIDTH  16
#define SEGMENT_HEIGHT  2*SEGMENT_WIDTH
#define SEGMENT_THICKNESS 3
#define SEGMENT_SPACING 3

static const color24_t COLOR_RED24 = {0xff, 0x00, 0x00, 0};
static const color24_t COLOR_DARKRED24 = {0x0f, 0x00, 0x00, 0};
static const color24_t COLOR_GREEN24 = {0x00, 0xff, 0x00, 0};
static const color24_t COLOR_DARKGREEN24 = {0x00, 0x0f, 0x00, 0};
static const color24_t COLOR_BLUE24 = {0x00, 0x00, 0xff, 0};
static const color24_t COLOR_DARKBLUE24 = {0x00, 0x00, 0x0f, 0};

static struct pulse_time_tm current_time;
static struct pulse_time_tm last_time;

color24_t f_colors[3];
color24_t b_colors[3];

/**
 *  Seven segment definition.
 *
 *  AAAAAAA
 *  F     B
 *  F     B
 *  F     B
 *  GGGGGGG
 *  E     C
 *  E     C
 *  E     C
 *  DDDDDDD
 */

// Bit fields to specify rendering a segment
#define S_A 0x1
#define S_B 0x2
#define S_C 0x4
#define S_D 0x8
#define S_E 0x10
#define S_F 0x20
#define S_G 0x40
#define S_NONE 0x0
#define S_ALL 0x7F


// Mask lookups for numbers 0-9
static const uint8_t segment_mask[10] = {   S_A | S_B | S_C | S_D | S_E | S_F, // Digit 0
                                            S_B | S_C,                         // Digit 1
                                            S_A | S_B | S_G | S_E | S_D,       // Digit 2
                                            S_A | S_B | S_G | S_C | S_D,       // Digit 3
                                            S_F | S_B | S_G | S_C,             // Digit 4
                                            S_A | S_F | S_G | S_C | S_D,       // Digit 5
                                            S_F | S_G | S_C | S_E | S_D,       // Digit 6
                                            S_A | S_B | S_C,                   // Digit 7
                                            S_ALL,                             // Digit 8
                                            S_A | S_F | S_G | S_B | S_C        // Digit 9
                                            };

void init_time() {
    last_time.tm_min = 0;
    last_time.tm_sec = 0;
    last_time.tm_hour = 0;
}

void handle_button_causing_wakeup ();

void main_app_init () {
    // Set a timer to go to sleep if we don't hear from anyone
    pulse_update_power_down_timer(10000);

    init_time();

    // Setup the color look ups;
    f_colors[0] = COLOR_BLUE24;
    b_colors[0] = COLOR_DARKBLUE24;

    f_colors[1] = COLOR_GREEN24;
    b_colors[1] = COLOR_DARKGREEN24;

    f_colors[2] = COLOR_RED24;
    b_colors[2] = COLOR_DARKRED24;

    // Register a callback for the woke_from_button event
    pulse_register_callback(ACTION_WOKE_FROM_BUTTON, &handle_button_causing_wakeup);
}

void handle_button_causing_wakeup () {
    pulse_update_power_down_timer(10000);
}

void main_app_handle_button_down() {
}

void main_app_handle_button_up() {
    // Reset any timer to go to sleep
    pulse_update_power_down_timer(10000);

}

void draw_line_horizontal (uint8_t x, uint8_t y, uint8_t len, color24_t color) {
     pulse_set_draw_window(x, y, x+len, y);
     for (uint8_t i=0; i < len; i++) {
          pulse_draw_point24(color);
     }
}

void draw_line_vertical (uint8_t x, uint8_t y, uint8_t len, color24_t color) {
    pulse_set_draw_window(x, y, x, y+len);
    for (uint8_t i=0; i < len; i++) {
         pulse_draw_point24(color);
    }
}

/**
 * Draw '/'. E.g 45 degree line
 */
void draw_line_slash(uint8_t x, uint8_t y, uint8_t len, color24_t color) {
    for (uint8_t i=0; i < len; i++) {
         pulse_set_draw_window(x, y, x, y);
         pulse_draw_point24(color);
         x--;
         y++;
    }

}

/**
 * Draw '\'. E.g. a 45 degree line
 */

void draw_line_backslash(uint8_t x, uint8_t y, uint8_t len, color24_t color) {

    for (uint8_t i=0; i < len; i++) {
         pulse_set_draw_window(x, y, x, y);
         pulse_draw_point24(color);
         x++;
         y++;
    }

}

void draw_7segment_top (uint8_t x, uint8_t y, uint8_t w, color24_t color) {
    for (uint8_t i=0; i < SEGMENT_THICKNESS; i++) {
        draw_line_horizontal(x+i, y+i, w - (2*i), color);
    }
}


void draw_7segment_bottom (uint8_t x, uint8_t y, uint8_t w, color24_t color) {
    for (uint8_t i=0; i < SEGMENT_THICKNESS; i++) {
        draw_line_horizontal(x+i, y-i, w - (2*i), color);
    }
}


void draw_7segment_left (uint8_t x, uint8_t y, uint8_t h, color24_t color) {
    for (uint8_t i=0; i < SEGMENT_THICKNESS; i++) {
        draw_line_vertical(x+i,y+i, h/2 - (2*i), color);
    }
}

void draw_7segment_right (uint8_t x, uint8_t y, uint8_t h, color24_t color) {
    for (uint8_t i=0; i < SEGMENT_THICKNESS; i++) {
        draw_line_vertical(x-i,y+i, h/2 - (2*i), color);
    }
}

void draw_7segment_middle(uint8_t x, uint8_t y, uint8_t w, color24_t color) {
    draw_line_horizontal(x+1, y, w - 2, color);
    draw_line_horizontal(x, y+1, w , color);
    draw_line_horizontal(x+1, y+2, w - 2, color);
}

/**
 * Draw a 7 segment number digit.
 *
 * val - val to print  should be less than 10
 * x/y - coordinates to print at
 * w/h - width/height of the number
 * f_color - foreground color for an active segment
 * b_color - background color for a "ghost" segment
 *
 */
void draw_7segment_number(uint8_t val, uint8_t x, uint8_t y, uint8_t w, uint8_t h, color24_t f_color, color24_t b_color) {
    // Sanity check that we only do 1 digit
    val = val % 10;

    // Get the mask of segments
    uint8_t mask = segment_mask[val];

    // Render either the foreground or background (ghost) color
    // Depending on the mask
    draw_7segment_top(x+1, y, w, (mask & S_A ? f_color : b_color));

    draw_7segment_right(x + w + 1, y+2, h, (mask & S_B ? f_color : b_color));
    draw_7segment_right(x + w + 1, y+4+h/2, h,  (mask & S_C ? f_color : b_color));

    draw_7segment_bottom(x+1,y+h + 4 + 1, w, (mask & S_D ? f_color : b_color));

    draw_7segment_left(x, y+4+h/2, h, (mask & S_E ? f_color : b_color));
    draw_7segment_left(x, y+2, h, (mask & S_F ? f_color : b_color));

    draw_7segment_middle(x+1, y+h/2 + 1, w, (mask & S_G ? f_color : b_color));

}

/**
 * Draw a '1' only if the val is greater than zero. This would be for the first digit of the watch to save width
 */
void draw_7segment_one(uint8_t val, uint8_t x, uint8_t y, uint8_t h, color24_t f_color, color24_t b_color) {

    draw_7segment_right(x, y+2, h, (val > 0 ? f_color : b_color));
    draw_7segment_right(x, y+4+h/2, h, (val > 0 ? f_color : b_color));

}

/**
 * Draw a ':'
 */
void draw_colon (uint8_t x, uint8_t y, color24_t color) {
    draw_line_vertical(x,y-4, 4, color);
    draw_line_vertical(x+1,y-4, 4, color);
    draw_line_vertical(x+2,y-4, 4, color);

    draw_line_vertical(x,y+4, 4, color);
    draw_line_vertical(x+1,y+4, 4, color);
    draw_line_vertical(x+2,y+4, 4, color);
}

void draw_clock(color24_t f_color, color24_t b_color) {

    // AM or PM
    uint8_t meridiem = MERIDIEM_AM;

    // Local variable to deal with non-military time display
    uint8_t hour = current_time.tm_hour;
    uint8_t min = current_time.tm_min;
    uint8_t sec  = current_time.tm_sec;

    if (hour >= 12) meridiem = MERIDIEM_PM;
    if (hour > 12) hour -= 12;

    uint8_t y = SCREEN_HEIGHT/2 - SEGMENT_HEIGHT/2;
    uint8_t x = SEGMENT_SPACING;

    // Draw the "1"
    draw_7segment_one(hour / 10, x, y, SEGMENT_HEIGHT, f_color, b_color);
    x += SEGMENT_THICKNESS + SEGMENT_SPACING;

    // Draw the rest of the hour
    draw_7segment_number(hour % 10, x, y, SEGMENT_WIDTH, SEGMENT_HEIGHT, f_color, b_color);
    x += SEGMENT_WIDTH + SEGMENT_SPACING + 1;

    // Draw the colon
    draw_colon(x, y + 1 + SEGMENT_HEIGHT/2, (sec % 2 == 0 ? f_color : b_color));
    x += SEGMENT_THICKNESS + 2;

    // Draw the min
    draw_7segment_number(min / 10, x, y, SEGMENT_WIDTH, SEGMENT_HEIGHT, f_color, b_color);
    x += SEGMENT_WIDTH + SEGMENT_SPACING + 1;
    draw_7segment_number(min % 10, x, y, SEGMENT_WIDTH, SEGMENT_HEIGHT, f_color, b_color);

    // Draw the sec
    y += SEGMENT_HEIGHT/2;
    x += SEGMENT_WIDTH + 4;
    draw_7segment_number(sec / 10, x, y, SEGMENT_WIDTH/2, SEGMENT_HEIGHT/2, f_color, b_color);
    x += SEGMENT_WIDTH/2 + 4;
    draw_7segment_number(sec % 10, x, y, SEGMENT_WIDTH/2, SEGMENT_HEIGHT/2, f_color, b_color);


}

void main_app_loop () {

    pulse_get_time_date(¤t_time);
    if (last_time.tm_sec != current_time.tm_sec || last_time.tm_min != current_time.tm_min || last_time.tm_hour != current_time.tm_hour) {
        draw_clock(f_colors[current_time.tm_min%3], b_colors[current_time.tm_min%3]);
        last_time.tm_sec= current_time.tm_sec;
        last_time.tm_min = current_time.tm_min;
        last_time.tm_hour = current_time.tm_hour;
    }
}


void main_app_handle_doz() {

    init_time();

}


void main_app_handle_hardware_update(enum PulseHardwareEvent event) {

}

MonkeyEnFuego · **Joined:** Wed Mar 23, 2011 9:35 am **Posts:** 54

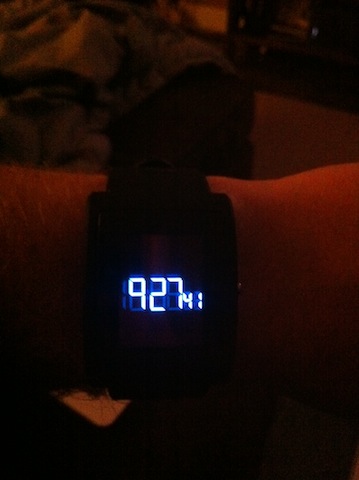

Better image of what it looks like. With a different color

number3 · **Joined:** Wed Apr 06, 2011 8:53 pm **Posts:** 32

Very nice! Thanks for posting it!
